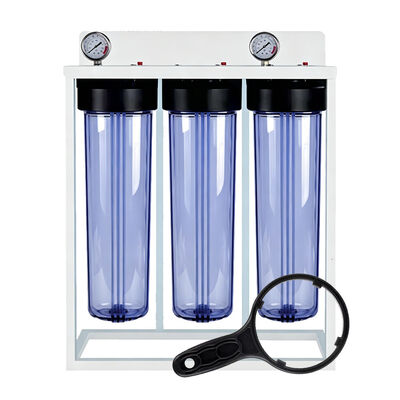

Triple 20" x 4.5" Big Blue Clear Water Filter Housing with Pressure Gauge C -C -C

1
MOQ
Negotiable
Price
Triple 20" x 4.5" Big Blue Clear Water Filter Housing with Pressure Gauge C -C -C
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Product Name: 3-Stage 20" X 4.5" Big Blue Clear Water Filter Housing With Pressure Gauge C -C -C
Product Material: Polypropylene Body
Housing Type: 20'' Big Blue Housing
Filter Cartridges: Uses Any Brand 20" X4.5" Filter
Application: Household, Commercial
MOQ: According To Your Needs, Contact Us （lulu@royolWater.com）
Advantages: Competitive Price, High Standard Quality
Filter Media: DIY
Inlet Pressure: 0.3-0.4M Pa
Material: Plastic
Control System: Full Automatic PLC / Manual
Max Working Pressure: 125PSI
Pressure: 8 Bar
Grade: Food Stage
Working Temperature: 4℃ - 45℃/39.2°F - 113°F
Length Optional: 10 Inch / 20 Inch
Basic Infomation
Place of Origin: Guanggong
Brand Name: ROYOL / OEM / ODM
Certification: CE, RoSH
Model Number: RY-20BH-13
Payment & Shipping Terms
Packaging Details: Color box
Delivery Time: 10-15 work days
Payment Terms: T/T
Supply Ability: 100 pcs per day
Product Description
Triple 20" x 4.5" Big Blue Clear Water Filter Housing with Pressure Gauge C -C -C

ROYOL water 3-Stage 20" Clear Big Blue Filter System, equipped with dual pressure gauges, filter wrench and white standalone metal frame for wall or floor installation.

Made of food-grade thickened PP for high flow rate. Double NBR O-rings plus top pressure relief valve ensure leak-proof sealing and safe filter replacement.

Compatible with all 20" Big Blue cartridges: PP, CTO, UDF, composite & anti-scale filters for tap and well water customization.

Available with brass(3/4",1") & plastic(1",1.5") ports to fit global plumbing standards. Great for whole-house pre-filtration, well water, catering water, RO pre-treatment and irrigation; 10-inch size is optional.

Product Details
Product Name 3-Stage 20" x 4.5" Big Blue Clear Water Filter Housing with Pressure Gauge C -C -C
Product Material Polypropylene body
Housing Type 20'' Big blue Housing
Filter Cartridges Uses Any Brand 20" x4.5" Filter
Application Household, Commercial
MOQ According to your needs, Contact us (lulu@royolWater.com)
Technical Specifications
Uses Any 20" x 4.5" cartridges
Max Pressure 90 PSI (6.20 bar)
Temperature Rating 40°F to 100°F (4.4°C to 37.8°C)
Material Food-grade premium polypropylene
O-Rings Double O-Rings for sealed leak-protection
System Inlet/Outlet Ports Size Brass (3/4" and 1") & Plastic (1" and 1.5") Options available
Key Features
  • Transparent 20-inch filter housing:Clear body lets you observe filter dirt status in real time, replace cartridges timely to save cost
  • Dual O-ring sealing design:Double O-ring construction delivers tight sealing, leakproof under normal working water pressure
  • Large flow 20" big blue housing:20-inch large size supports high water flow, ideal for whole house & commercial pre-filtration
  • Complete accessory matching:Comes with pressure gauges, filter wrench & sturdy metal stand for easy DIY installation
