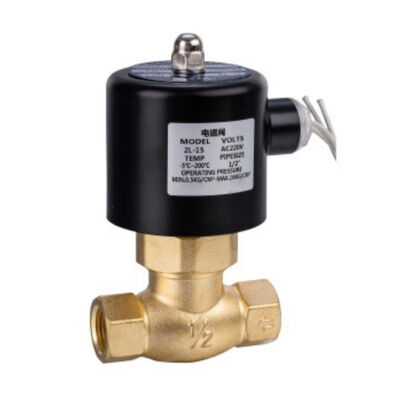

Name: 2L Series Steam Solenoid Valve Pilot Operated Piston Type
Brand: ROYOL WATER CO., LTD
SKU: RYSV52
Availability: InStock

2L Series Steam Solenoid Valve Pilot Operated Piston Type

1PCS

MOQ

Negotiable

Price

Features Gallery Product Description Chat Now

Features

Specifications

Highlight:

Underwater stainless steel solenoid valve

Solenoid valve for water filter

Music spring water solenoid valve

Basic Infomation

Place of Origin: CHINA

Brand Name: ROYOL/OEM

Certification: CE

Model Number: RYSV52

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 5-10days

Payment Terms: T/T

Supply Ability: 10000pcs/day

Gallery

2L Series Steam Solenoid Valve Pilot Operated Piston Type

Product Description

Underwater Stainless Steel Solenoid Valve for Music Spring Water Filter

This underwater brass solenoid valve is engineered for precise fluid control in aquatic environments, specifically designed for dancing music water fountain systems and other underwater applications.

Applications

Underwater Fluid Control

Ideal for underwater irrigation systems, aquarium water flow management, and fountain applications
Provides precise on/off control and flow rate adjustment to create optimal aquatic environments

Underwater Equipment Cooling

Controls cooling water circulation for underwater motors and sensors
Ensures equipment operates within safe temperature ranges and extends service life

Underwater Hydraulic Systems

Manages hydraulic oil flow direction and pressure in underwater robotics and submersible equipment
Enables precise control of mechanical components

Operating Principle

The valve operates using electromagnetic induction and core movement. When energized, the electromagnetic coil generates a magnetic field that lifts the valve core against spring pressure, opening the valve. When de-energized, the spring returns the core to its closed position, stopping fluid flow.

Key Functions

On-Off Control: Provides rapid and precise water flow control for automated irrigation and system management
Flow Regulation: Adjustable valve opening allows for precise flow rate control to create varying fountain effects and water patterns
Remote Control: Compatible with modern control systems for wireless or cable-based remote operation, ideal for deep-sea exploration and automated systems

Technical Specifications

Ambient Temperature	-10℃ to 50℃
Media Temperature	0℃ to 60℃
Working Pressure	1MPa
Media	Water
Body Material	Brass/Stainless Steel
Power Supply	Below 32: AC220V 15VA, DC24V 15W Φ40/50: AC220V 25VA, DC24V 25W
Voltage Fluctuation	-10% to +10%
Insulation Grade	B Class
Protection Class	IP68
Opening/Closing Speed	1 Second
Service Life	100,000 Cycles

Installation Requirements

Media flow direction must align with arrow markings. Coil must be positioned vertically upward. Working media must be clean and free from particulate impurities.

Product Images
