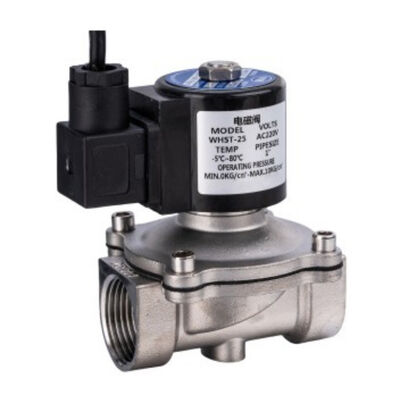

Name: Underwater Stainless Steel Solenoid valve for Music Spring Water Filter
Brand: ROYOL WATER CO., LTD
SKU: RYSV52
Availability: InStock

Underwater Stainless Steel Solenoid valve for Music Spring Water Filter

1PCS

MOQ

Negotiable

Price

Features Gallery Product Description Chat Now

Features

Specifications

Highlight:

Underwater brass solenoid valve

Brass solenoid valve for water fountain

Music fountain solenoid valve

Basic Infomation

Place of Origin: CHINA

Brand Name: ROYOL/OEM

Certification: CE

Model Number: RYSV52

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 5-10days

Payment Terms: T/T

Supply Ability: 10000pcs/day

Gallery

Underwater Stainless Steel Solenoid valve for Music Spring Water Filter

Product Description

Underwater Brass Solenoid Valve for Dancing Music Water Fountain

This underwater brass solenoid valve is engineered for precise fluid control in aquatic environments, specifically designed for dancing music water fountain systems and other underwater applications.

Applications

Underwater Fluid Control: Ideal for underwater irrigation systems, aquarium water flow management, and fountain applications. Provides precise on/off control and flow rate adjustment to create optimal aquatic environments.
Underwater Equipment Cooling: Controls cooling water circulation for underwater motors and sensors, ensuring equipment operates within safe temperature ranges and extending service life.
Underwater Hydraulic Systems: Manages hydraulic oil flow direction and pressure in underwater robotics and submersible equipment, enabling precise control of mechanical components.

Operating Principle

The valve operates using electromagnetic induction and core movement. When energized, the electromagnetic coil generates a magnetic field that lifts the valve core against spring pressure, opening the valve. When de-energized, the spring returns the core to its closed position, stopping fluid flow.

Key Functions

On-Off Control: Provides rapid and precise water flow control for automated irrigation and system management.
Flow Regulation: Adjustable valve opening allows for precise flow rate control to create varying fountain effects and water patterns.
Remote Control: Compatible with modern control systems for wireless or cable-based remote operation, ideal for deep-sea exploration and automated systems.

Technical Specifications

Ambient Temperature	-10℃ to 50℃
Media Temperature	0℃ to 60℃
Working Pressure	1MPa
Media	Water
Body Material	Brass/Stainless Steel
Power Supply	Below 32: AC220V 15VA, DC24V 15W Φ40/50: AC220V 25VA, DC24V 25W
Voltage Fluctuation	-10% to +10%
Insulation Grade	B Class
Protection Class	IP68
Opening/Closing Speed	1 Second
Service Life	100,000 Cycles

Installation Requirements

Media flow direction must align with arrow markings. Coil must be positioned vertically upward. Working media must be clean and free from particulate impurities.
